SmartTag - Automatic Vehicle Identification
Revolutionize Your Fueling with SmartTag: Our fully automated and contactless system integrates the fuel nozzle with a unique RFID tag for each vehicle, streamlining fuel management. The SmartTag reads the tag and reports it to the Fuel Management System (FMS), ensuring only authorized vehicles receive fuel. Upgrade to an efficient and secure fueling process with SmartTag’s innovative technology.
The World's Most Functional Fuel Management System
Why SmartTag?
SmartTag is the gold standard in nozzle-based fuel management systems, eliminating fuel theft while also reducing driver frustration from needless shutoffs.
SmartTag’s fully automated, contactless system integrates the fuel nozzle with a unique RFID tag for each vehicle. The SmartTag reads the tag and reports it to the FMS. If authentication is successful, the fuel delivery is allowed to begin.
Innovative movement tracking technology prevents fuel theft by ensuring fuel delivering only occurs when the nozzle is in the authenticated vehicle. When the nozzle is removed from the fuel inlet, the fuel delivery is suspended or terminated.
SmartTag also offers greater reliability than contact-based systems that can be affected by dirt and other build-ups.
Summary of Benefits
- Simple vehicle authorisation
- Easy to use, just like standard refuelling
- Robust weatherproof nozzle design resists damage when dropped
- Ensures fuel is only dispensed within the authorised fuel inlet
- Securely mountable vehicle RFID tag design
- Rechargable battery with a long lifespan
- Automates activation of fuelling system
- Modular design allows for rapid installation and repair
- Requires no special technical skills to install or operate
"Smart Tag has been implemented on vehicles that are operational at a specific mill, as this system provides the most efficient way for vehicle refuelling. Vehicles fitted with the Smart Tag can refuel simply by inserting the nozzle reader and the system will identify the vehicle and activate the pump. The Smart Tag confirms the vehicle information and captures all of the required usage data at the same time."
Specifications and Support

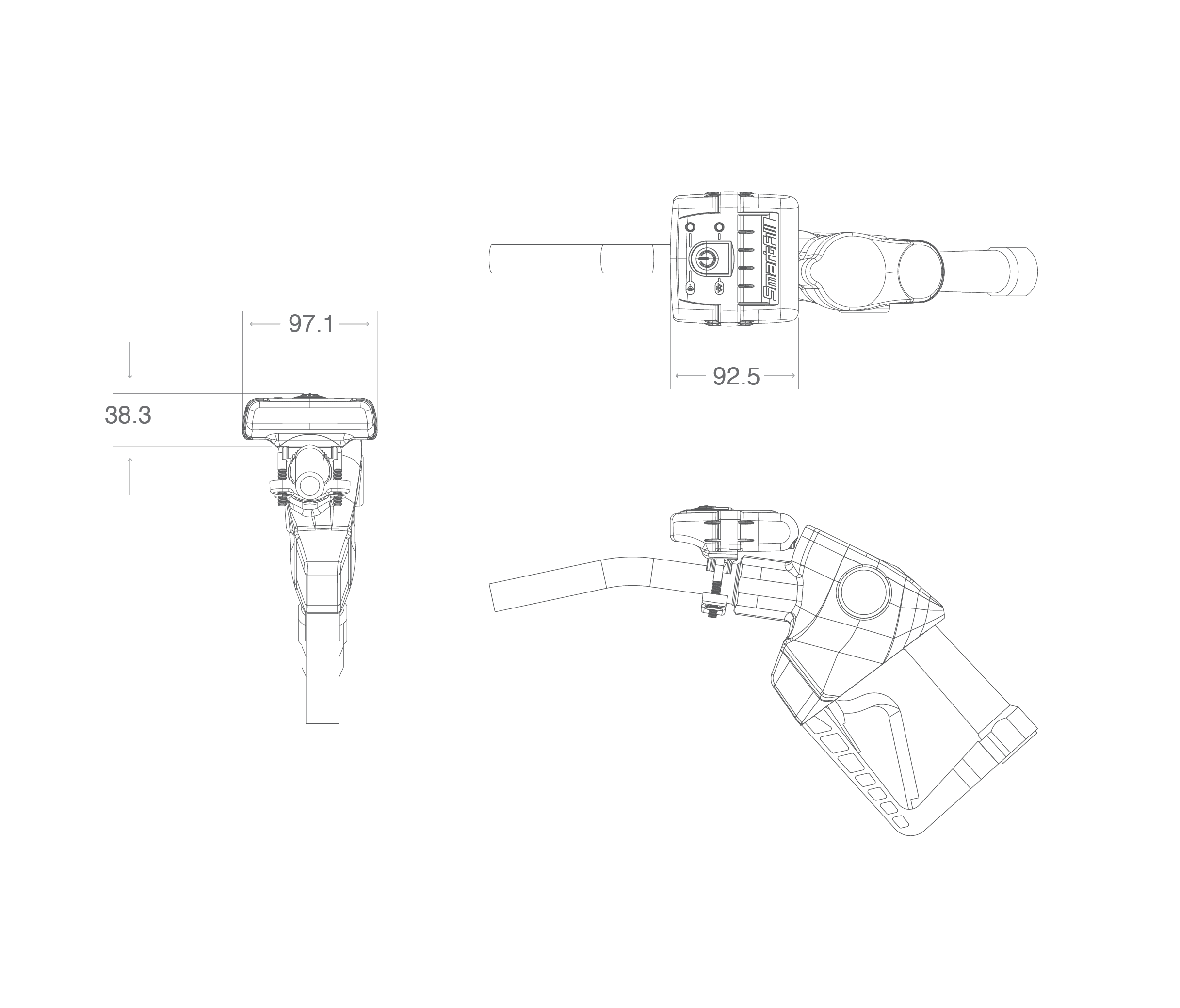

| SmartTag Dimensions (H x W x D): 37mm X 97mm X 92mm (1.5” X 3.8” X 3.6”) | Battery Life: Approx. 3 months (average of 40 transactions/day, average transaction time of 5 minutes) | Nozzles Supported: OPW 1” 7-HB Diesel OPW ¾” 11A Diesel ZVA 25 Diesel ZVA Slimline AdBlue Husky X Diesel Wiggins High Flow + Many More! |
| Battery Temperature Range: -55 °C to 85 °C (-67°F to 185°F) | Reader: Inbuilt UHF reader – EPC Class 1 Gen 2 compatible | |
| Power Supply: 3.7V 6.4Ah Li-ion rechargeable battery. Compliant with IEC86-4 safety standards. | Read Distance: 10 to 100cm (4” to 40”) depending on the orientation of SmartTag when installed | |
| Power Consumption: Sleep mode: ~0A. Active: ~20mA average | Maximum Nozzles per system: 8 when used with a protocol system, but limited to 5 connecting simultaneously. | |
| Recommended Fuel Types: Diesel, AdBlue, DEF and other non-hazardous liquids |
