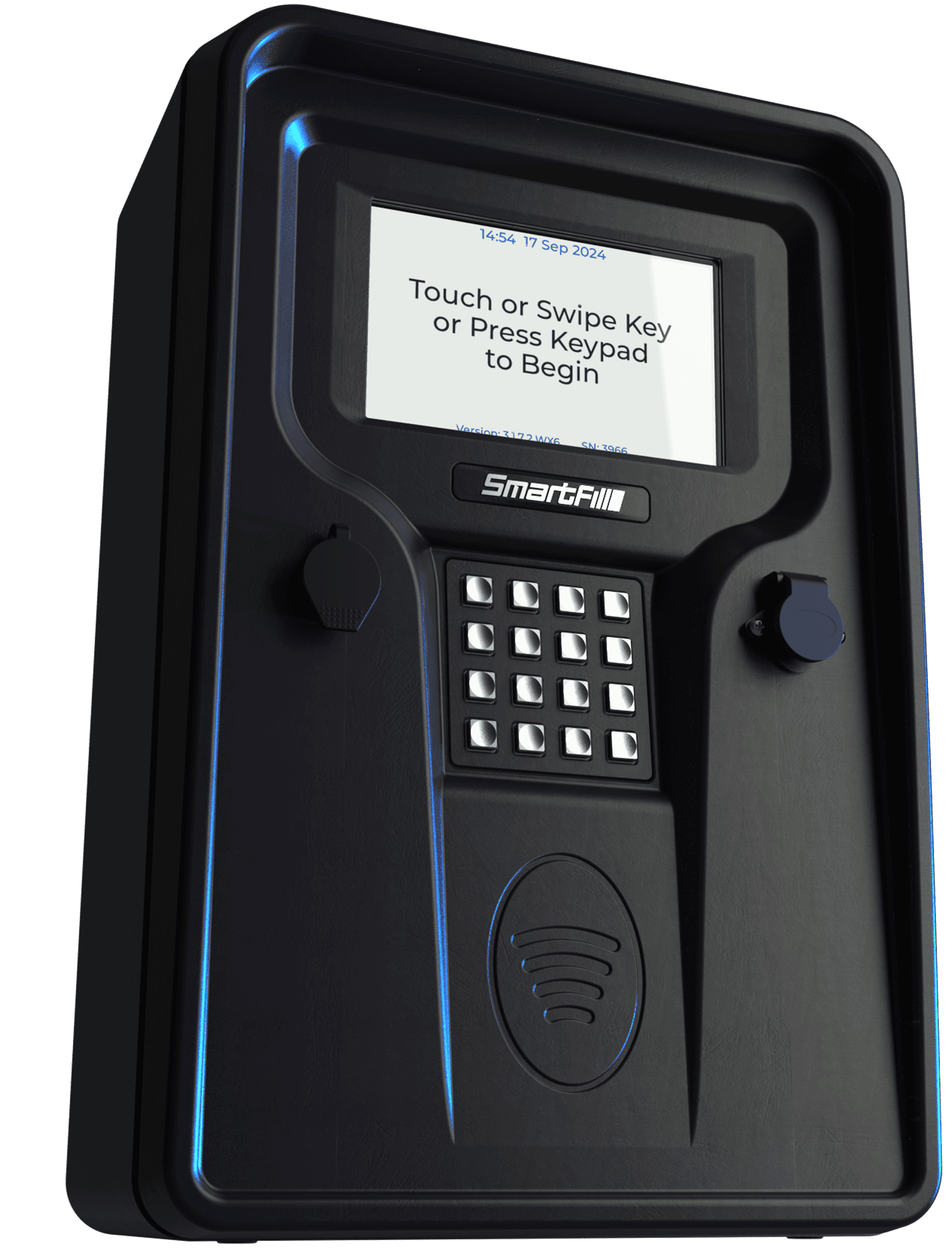

SmartFill GEN 3

With SmartFill GEN 3 fuel accounting has never been easier, with instant reconciliation, even across multiple sites.

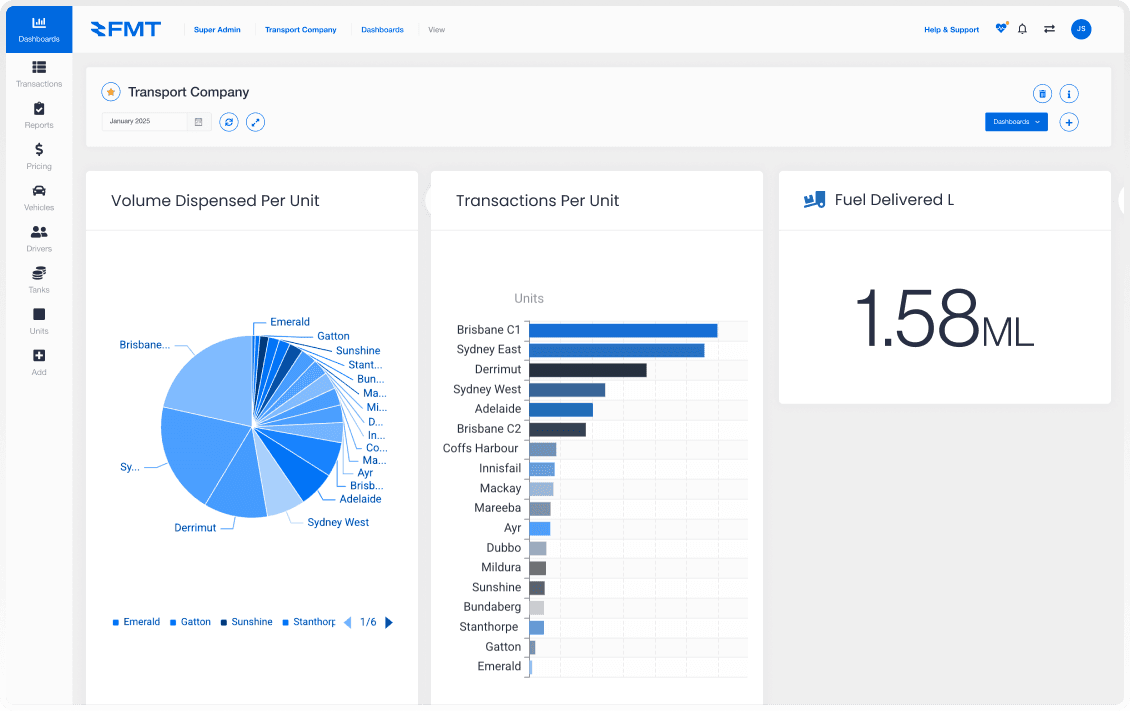

Real-time accurate fuel data can be accessed anywhere, anytime; to monitor, manage and report instantly.

Download Brochure
Gen3_NFC

The World's Most Functional Fuel Management System

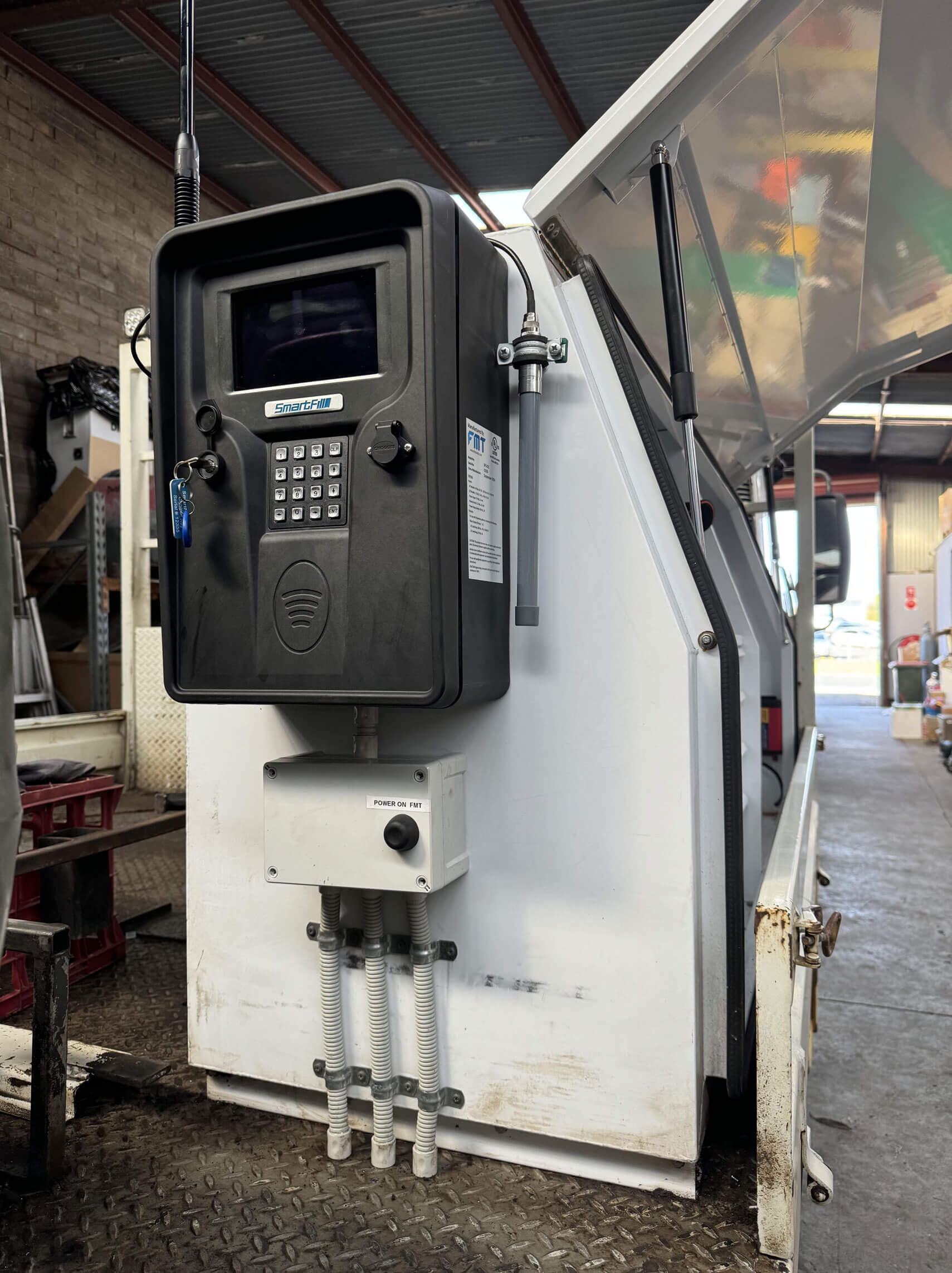

A robust system you can rely on

Known to outlast the bowsers they were originally attached to.

Easy to use, Easy to set up

Configure the unit with an intuitive menu based interface.

Smart on the inside

Easy to service the unit with plug and play modules. No need for special technical or electrical skills.

Smart Access

Long Lasting, NFC (Near Field Communications) based cards or FOBs for easy user or vehicle identification. Swipe cards and HID cards available with optional reader addon.

Networked Communications

Keep your records up-to-date in real-time. Your data is available with no need for any special software to access it.

Tough on the outside

An IP66 rated, automotive grade nylon enclosure ensures continuous operation in all conditions. Tested from -25°C to +55°C, and built with seals designed to stop dust, insects and water from entering the unit.

Enhanced Security

Access to fuel by a vehicle and/or driver can be restricted by user configurable settings such as time of day access and fill limits.

Summary of Benefits

web_rhs

See What Our Users Are Saying

Compare models

Tank Gauging Only

SmartFill GEN 3 can be used in Tank Gauging only mode to monitor and report your tank levels in realtime.

NMI Approved

Available as an NMI approved model for the sale of fuel.

Four Pumps

Allows you to use up to four pumps.

Accessories for SmartFill GEN 3

Customise your SmartFill GEN 3 with accessories such as Swipe Card Readers, HID Card Readers, and Automatic Tank Gauging.

Specifications and Support

Download Full Datasheet

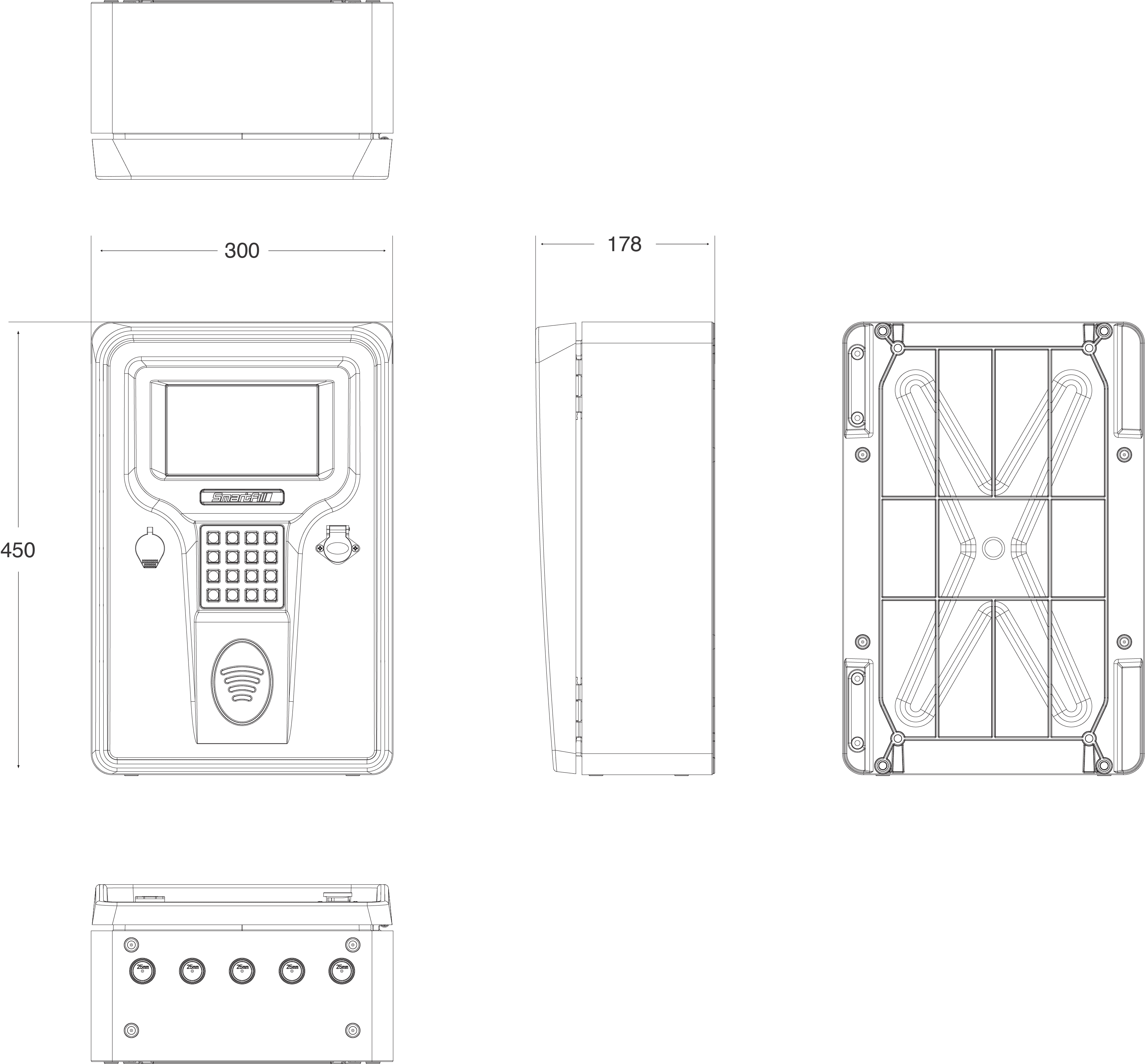

Enclosure Dimensions (H x W x D): 17.6” X 11.8” X 6.89” (450 X
300 X 175mm)
Enclosure Construction: Automotive Grade, glass-reinforced nylon
Pulser Input: 15VDC 2.5mANozzle Switch: 3.3VDC 0.2mA
Operating Temperature Range: -40ºC to 55ºCPower delay Switch: 36VDC 2A
Power Requirements: AC: 90 VAC (0.21A) – 250 VAC (0.1A) 50/60HzRelay Outputs (Pumps 1-4): DC switching 24VDC 5A, AC switching 240VAC 10A
Power Requirements: DC: 12 VDC (1.2A) – 24 VDC (0.5A)Ethernet: 10/100/ 1000 included
Readers:Inbuilt NFC reader, optional iButton, magnetic stripe,
HID and barcode readers
USB: USB2.0 interface included
Display:Blanview TFT-LCD Full Colour 7” (17.8CM) 800 x RGB
[H] x 480 [V] dots

3G/4G: 700, 800/850, 900, AWS1700, 1800, 1900, 2100 HSPA

Keypad: Vandal resistant 16 keyWi-Fi:802.11b/g/n, 2.4GHz, WEP, 802.11i WPA/WPA2
Personal Security
Pumps Supported:Mechanical (4), Electronic: Gilbarco (8 hoses),
Tatsuno, Compac, Tokheim and Wayne Dart and Current
Loop protocol
